Lowbed Trailer

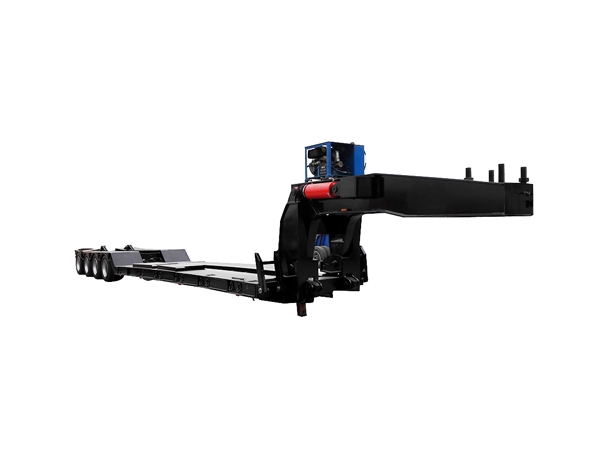

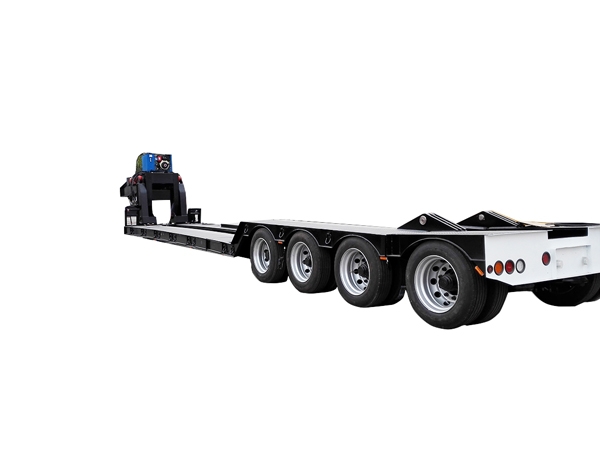

4 Axles Extendable Lowbed Trailer

Product Model: STD4AEX
Product Type: Lowbed Trailer
Payload: 65 tons
Delivery Time: 40 days
  • Specification
    1. Dimension: 16000 x 2600 x 1040 mm (Extended: 20500 x 3200 x 1040 mm)
    2. Tare weight: 16200 kg
    3. Payload: 65 tons

    Standard Configuration
    1. Axle: 13 ton Yuek brand, 4 units
    2. Suspension: Air suspension
    3. King pin: 2", bolt on type
    4. Landing gear: 28 ton, two speeds
    5. Tire: 255/70R22.5, 16 units
    6. Rim: 8.25-22.5, 16 units
    7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on all axles
    8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
    9. ABS: Wabco
    10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
    11. Mudguard: Plastic or steel
    12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

    Optional Configurations
    1. Mechanical suspension
    2. Axle: BPW 12 ton
  • 1. Low bed trailer can be used to transport many kinds of mechanical equipment.
    2. The center of its mass is very low, so it’s very safe during the transportation.
    3. Multi-axle trailers, modular trailers, etc, for your reference.
  • Please send us your inquiry and basic information, our sales will contact you asap!

    *

    *

    *
