Tank Container

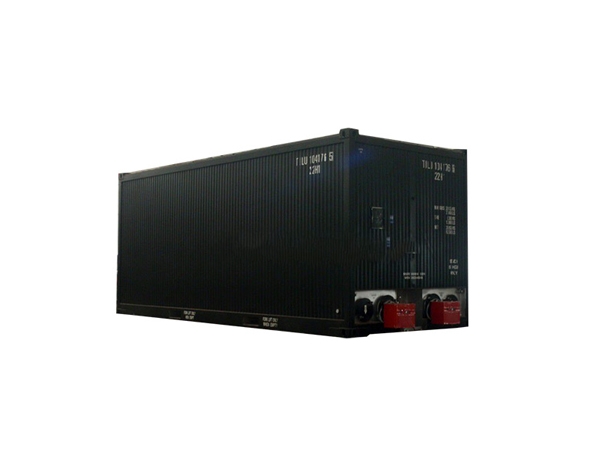

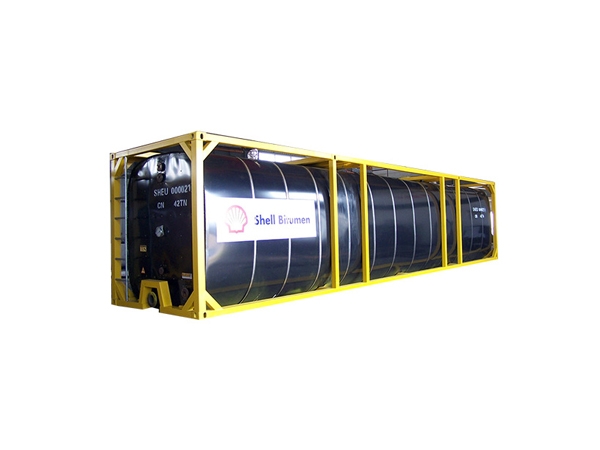

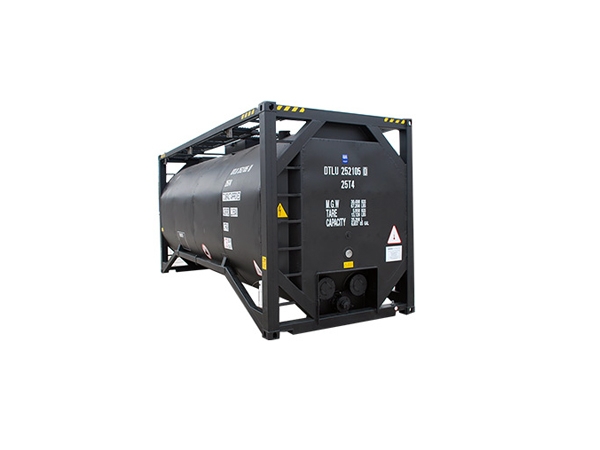

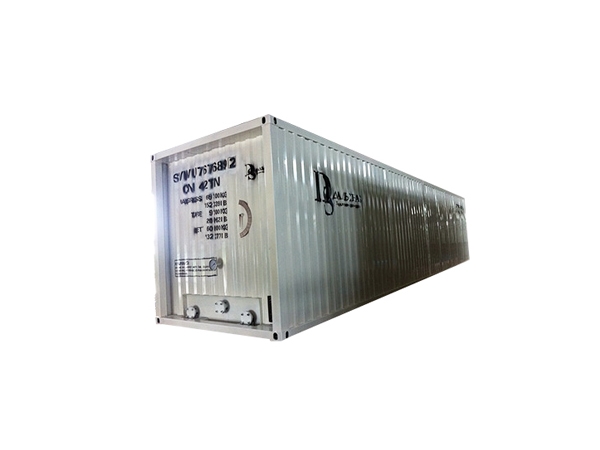

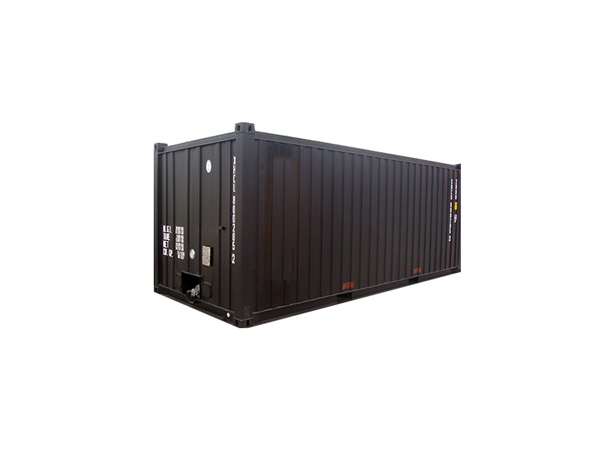

Bitumen Tank Container
Product Model: STDBTC
Product Type: Tank Container
Capacity: 25/50 CBM
Delivery Time: 30 days
-
Specification1. Recognized register: CCS2. Size: 20/40 feet, tank/box type3. Dimension: 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm4. Capacity: 25/50 CBM5. Tare weight: 4000/8200 kg6. Payload: 25000/50000 kg, water load at 20 celsius7. Gross weight: 29000/58200 kg
Standard Configuration1. Working pressure: 0.09 Mpa2. Working temperature: 250 celsius3. Temperature lapse rate: Less than 12 ℃/24h, feeding temperature more than 1204. Tank material: Q345B, 5/6 mm5. End enclosure: 5/6 mm, flanged flat head6. Stiffener: 6 mm, 4 pcs7. Heating pipe: φ57*3.5 mm, L = 77000/1540008. Compound manhole: DN5009. Bitumen filling hole: DN25010. Anti-leaking breather valve: DN6011. Overhead nitrogen blanketing valve: DN2512. Sheet gasket: PTFE13. Bitumen protective frame: 800*750*150 mm, with bitumen flooding pipe14. Thermometer: 0 to 300 celsius15. Volumeter: Ball floating type16. Bitumen discharge valve: DN8017. Quick coupling: DN80
18. Reserve feeding flange hole: DN50/100, 2 pcs
19. Flange hole of bitumen: DN50/100
20. Bitumen detecting valve: DN25
21. Flange hole of heating pipe: DN50, 2 pcs22. Insulated layer: 100 mm, glass fiber wool23. External close plate: 1.5 mm, cold rolled plate24. Guardrail of ladder: W = 400 mm
Optional Configurations1. Recognized register: BV or LR2. Heating system: Oil, Flue or Electricity -
1. Tank container is a kind of ISO shipping container.2. It can be used to transport or store liquid goods and liquid gas.3. We can provide client fuel tank, water tank, LPG tank, LNG tank and bitumen tank container.
