Tank Container

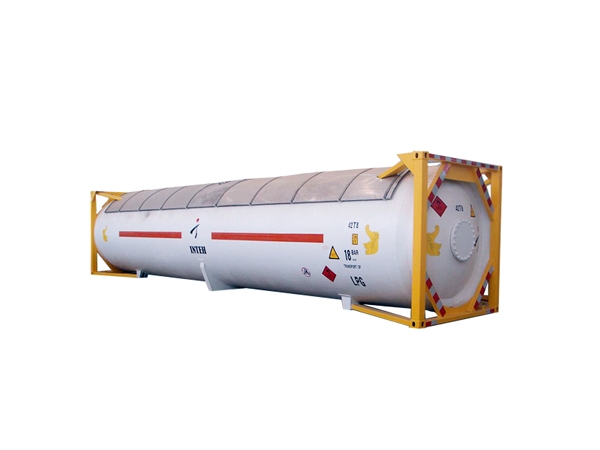

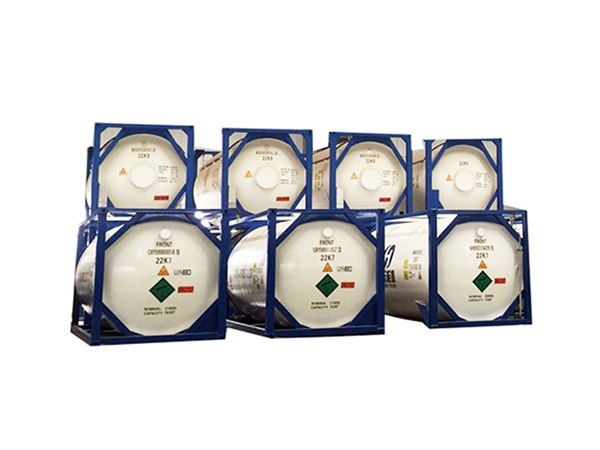

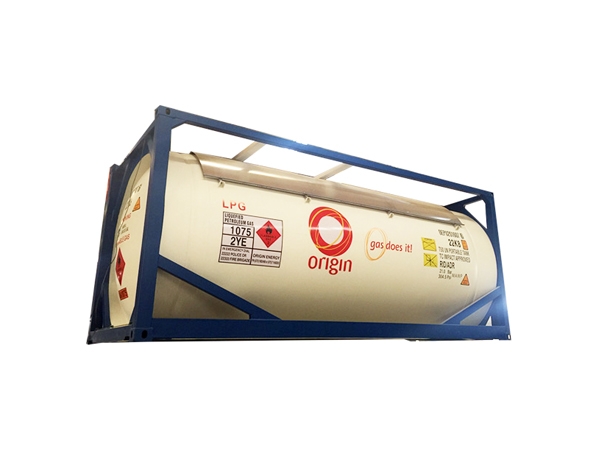

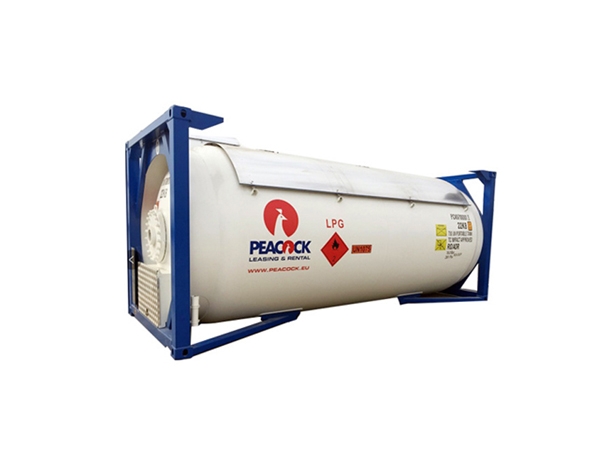

LPG Tank Container
Product Model: STDLPGTC
Product Type: Tank Container
Capacity: 25000/52000 Liters
Delivery Time: 60 days
-
Specification1. Design standard: IMDG-CODE, GB150-982. Recognized register: CCS3. Tank shape: Column shape, horizontal4. Size: 20/40 feet, tank type5. Dimension: 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm6. Capacity: 25000/52000 liters7. Loading medium: LPG8. Tare weight: 6750/13000 kg9. Payload: 13750/22000 kg10. Gross weight: 20500/35000 kg
Standard Configuration1. Design pressure: 1.8 Mpa2. Working pressure: 1.8 Mpa3. Test pressure: 2.2 Mpa, hydraulic pressure test4. Gastight test pressure: 1.8 Mpa5. Vacuum test pressure: 0.16 Mpa6. Design temperature: -40 to 55 celsius7. Working temperature: -40 to 55 celsius8. Corrosion degree: 09. Welding joint efficiency: 1.010. Radiographic inspection: 100% X-RAY11. Tank material: Q345DR, 12 mm12. End enclosure: 14 mm, bufferfly flat head13. Compound manhole: DN500, 1.8+25% Mpa equipped with safety valve14. Protective frame: 800*750*150 mm15. Liquid valve: DG50, 1 pc16. Gas valve: DG50, 1 pc17. Liquid lever: 1 pc18. Pressure gage: Y100, 1 pc19. Thermometer: WSS412, 1 pc20. Built-in safety valve spring: DG80, 1 pc21. Adiabatic form: Sunshade22. Guardrail of ladder: W = 400 mm23. Allowable stacking weight: 192000 kg
Optional Configurations1. Recognized register: BV or LR -
1. Tank container is a kind of ISO shipping container.2. It can be used to transport or store liquid goods and liquid gas.3. We can provide client fuel tank, water tank, LPG tank, LNG tank and bitumen tank container.
