Other Trailer

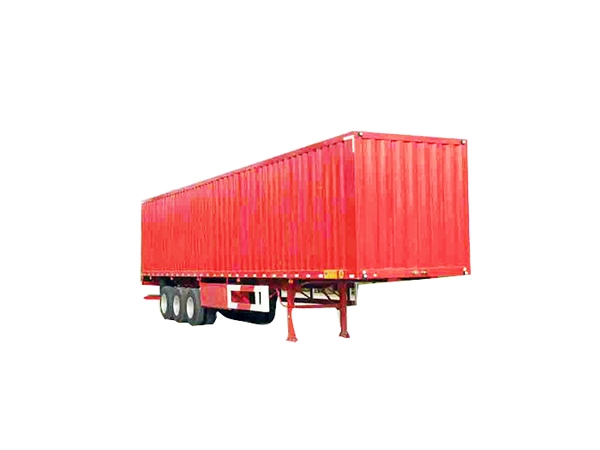

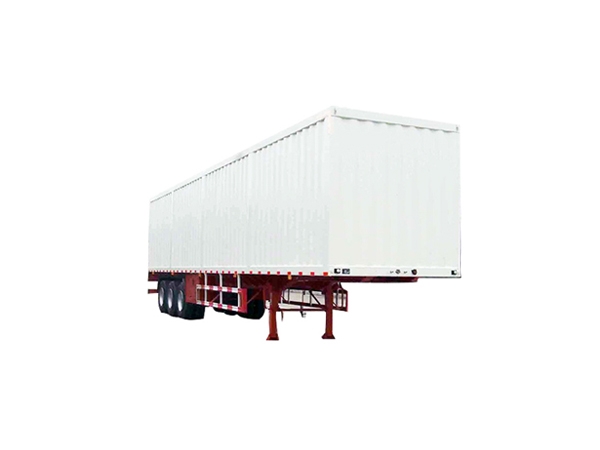

Van Trailer

Product Model: STDVT
Product Type: Van Trailer
Payload: 35 tons
Delivery Time: 40 days
  • Specification
    1. Overall dimension: 13000 x 2500 x 3850 mm
    2. Container dimension: 12840 x 2400 x 2400 mm
    3. Tare weight: 9000 kg
    4. Capacity: 74 CBM

    Standard Configuration
    1. Axle: 13 ton Fuwa brand, 150x150, 3 units
    2. Suspension: Mechanical suspension
    3. King pin: 2", bolt on type
    4. Landing gear: 28 ton, two speeds
    5. Tire: 11R22.5, 12 units
    6. Rim: 8.25-22.5, 12 units
    7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
    8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light
    9. ABS: None
    10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
    11. Mudguard: Plastic or steel
    12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

    Optional Configurations
    1. Air suspension: Firestone, Goodyear or Chinese brand
    2. Lift axle system
    3. ABS system: Wabco or Chinese brand
    4. Axle: BPW 12 ton
  • 1. Fence trailer is used to transport agricultural and sideline product.
    2. This kind of trailer use high quality steel so that side wall and fence will not be cracked, whole trailer is less weight and less fuel consumption.
  • Please send us your inquiry and basic information, our sales will contact you asap!

    *

    *

    *
