Product Model: STDWOT

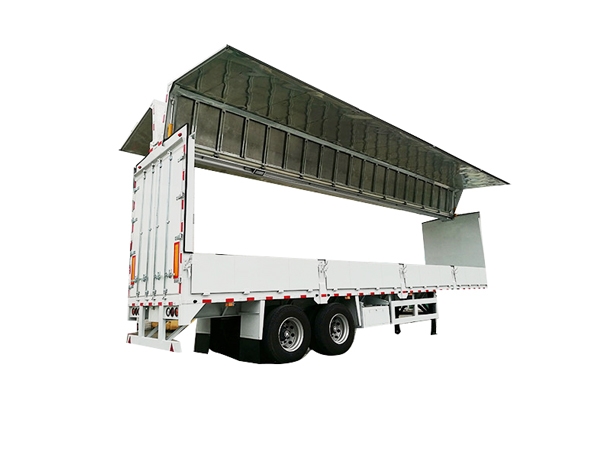

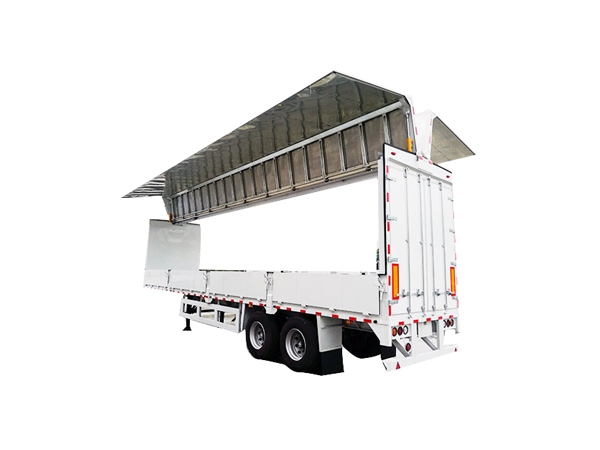

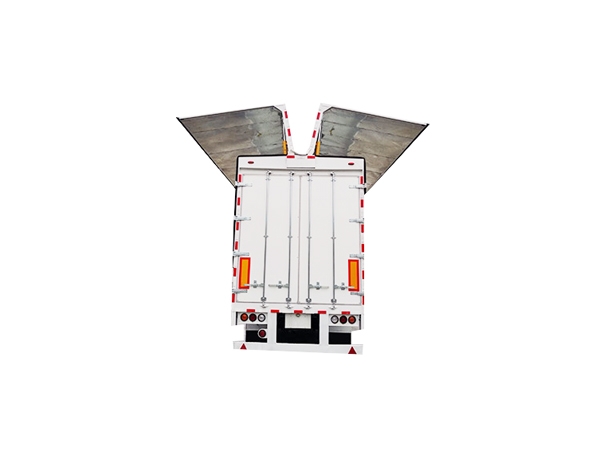

Product Type: Wing Open Trailer

Payload: 35 tons

Delivery Time: 40 days

Specification

1. Overall dimension: 12200 x 2500 x 4200 mm

2. Container dimension: 12200 x 2500 x 2800 mm

3. Tare weight: 9500 kg

4. Capacity: 80 CBM

5. Hydraulic system: Chinese brand

Standard Configuration

1. Axle: 13 ton Fuwa brand, 150x150, 2 units

2. Suspension: Air suspension

3. King pin: 2", bolt on type

4. Landing gear: 28 ton, two speeds

5. Tire: 11R22.5, 8 units

6. Rim: 8.25-22.5, 8 units

7. Braking system: Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles

8. Electrical system: Dual circuit, 7-way split pin receptacle plug, LED light

9. ABS: None

10. Painting: Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer

11. Mudguard: Plastic or steel

12. Others: 1 tool box, 1 wheel carrier, excluding spare wheel

Optional Configurations

1. Lift axle system

2. ABS system: Wabco or Chinese brand

3. Axle: BPW 12 ton
1. Wing open trailer use hydraulic system to control both wings.

2. This kind of trailer is easily to load and unload goods from both sides.
