Tank Container

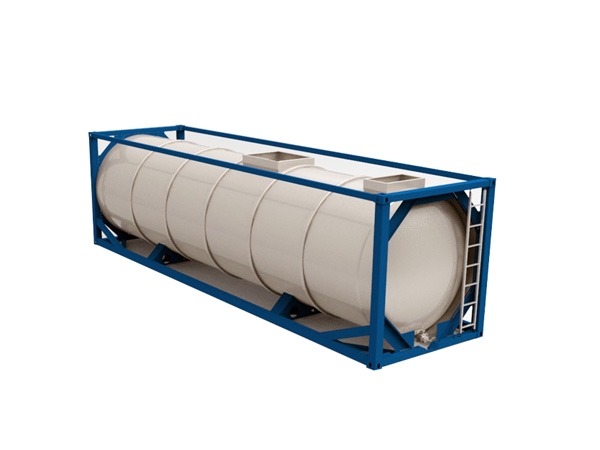

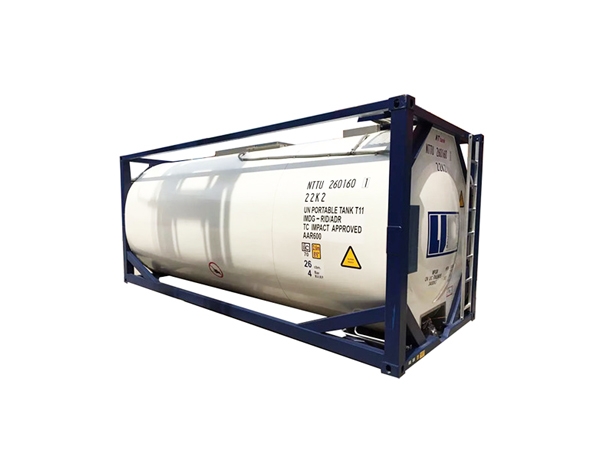

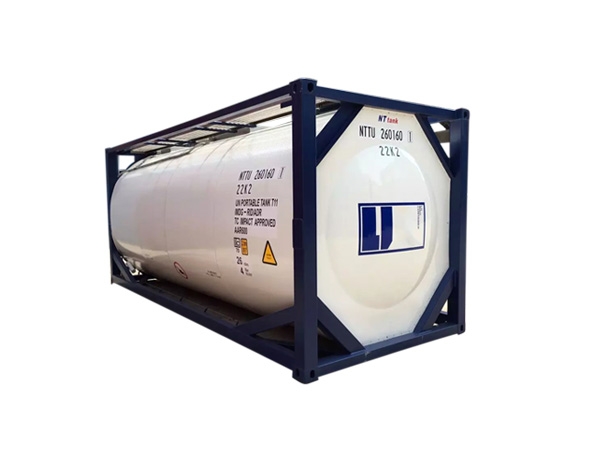

Stainless Steel Tank Container
Product Model: STD20SSTC
Product Type: Tank Container
Capacity: 23500/44500 Liters
Delivery Time: 30 days
-
Specification1. Design standard: IMDG-CODE, GB150-982. Recognized register: CCS3. Tank shape: Column shape, horizontal4. Size: 20/40 feet, tank type5. Dimension: 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm6. Capacity: 23500/44500 liters7. Loading medium: Wine, juice or cooking oil8. Tare weight: 4000/6200 kg9. Payload: 23000/43600 kg10. Gross weight: 27000/49800 kg
Standard Configuration1. Design pressure: 0.3 Mpa2. Working pressure: 0.2 Mpa3. Test pressure: 0.3 Mpa, hydraulic pressure test4. Gastight test pressure: 0.22 Mpa5. Vacuum test pressure: 0.041 Mpa6. Design temperature: -20 to 130 celsius7. Working temperature: -20 to 130 celsius8. Corrosion degree: 09. Welding joint efficiency: 1.010. Radiographic inspection: 100% X-RAY11. Tank material: SS316 food grade stainless steel, 5 mm12. End enclosure: 6 mm13. Washplate: 4 mm, 2/4 compartments, 1 bin14. Compound manhole: DN50015. Safety valve: DN80, FORTVALE16. Gas phase valve: DN25, FORTVALE17. Inlet and discharge valve: DN80, FORTVALE18. Vapour return: DN8019. Thermometer: -40 to 160 celsius, 1 pc20. Exterior paneling: 0.6 mm, Sandwich steel plate plus stainless baling strip with waterproof sealing21. Guardrail of ladder: W = 400 mm22. Allowable stacking weight: 192000 kg
Optional Configurations1. Recognized register: BV or LR2. Heating system3. Insulated layer: 50 mm rock wool -
1. Tank container is a kind of ISO shipping container.2. It can be used to transport or store liquid goods and liquid gas.3. We can provide client fuel tank, water tank, LPG tank, LNG tank and bitumen tank container.
