Tank Container

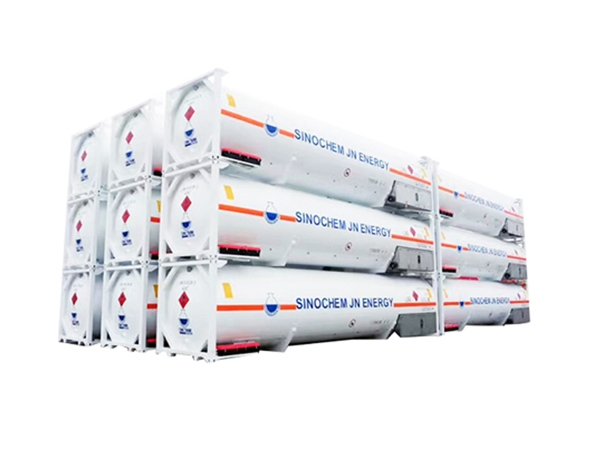

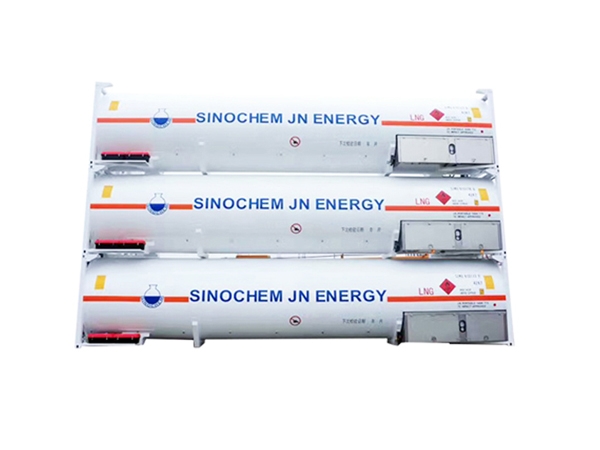

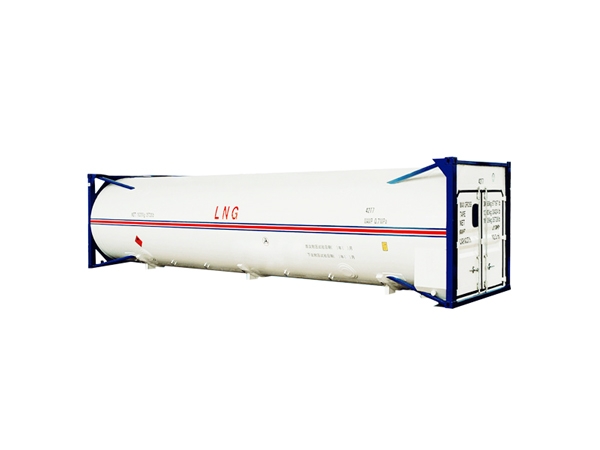

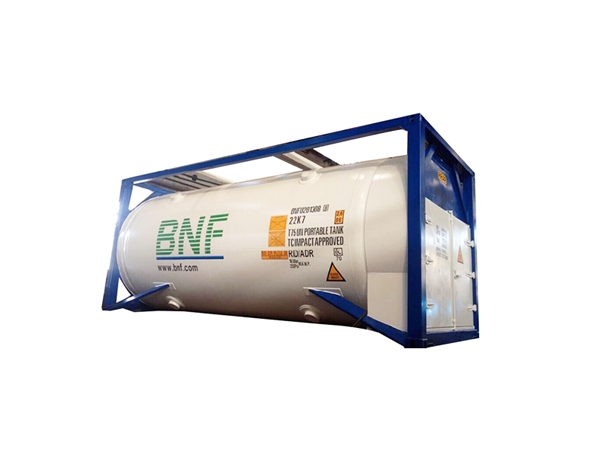

LNG Tank Container
Product Model: STDLNGTC
Product Type: Tank Container
Capacity: 19800/46500 Liters
Delivery Time: 90 days
-
Specification1. Design standard: IMDG-CODE, GB150-982. Recognized register: CCS3. Tank shape: Column shape, horizontal4. Size: 20/40 feet, tank type5. Dimension: 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm6. Capacity: 19800/46500 liters7. Loading medium: LNG8. Tare weight: 11050/14000 kg9. Payload: 22950/20000 kg10. Gross weight: 34000 kg
Standard Configuration1. Design pressure: 2.21 Mpa2. Working pressure: 20 feet, 1.6 Mpa; 40 feet, 0.6 Mpa3. Test pressure: 20 feet, 1.6 Mpa; 40 feet, 1.0 Mpa, hydraulic pressure test4. Gastight test pressure: 1.44 Mpa5. Vacuum test pressure: 0.1 Mpa6. Design temperature: -196 to 55 celsius7. Working temperature: -162 to 50 celsius8. Corrosion degree: 09. Welding joint efficiency: 1.010. Radiographic inspection: 100% X-RAY11. Tank material: SA-240 304, SA-516 70, double layer, 20 feet, 16/6 mm; 40 feet, 7 mm12. End enclosure: 20 feet, 18/8 mm; 40 feet, 8 mm13. Compound manhole: DN50014. Safety valve: DN2515. Gas phase valve: 20 feet, DN40; 40 feet, DN 5016. Liquid valve: 20 feet, DN40; 40 feet, DN5017. Pressure gage: Y100, 1 pc18. Thermometer: WSS412, 1 pc19. Static evaporation rate: 20 feet, less than 0.18 %/d; 40 feet, less than 0.225%/d20. Adiabatic form: Vacuum multilayer winding adiabatic21. Allowable stacking weight: 192000 kg
Optional Configurations1. Recognized register: BV or LR -
1. Tank container is a kind of ISO shipping container.2. It can be used to transport or store liquid goods and liquid gas.3. We can provide client fuel tank, water tank, LPG tank, LNG tank and bitumen tank container.
